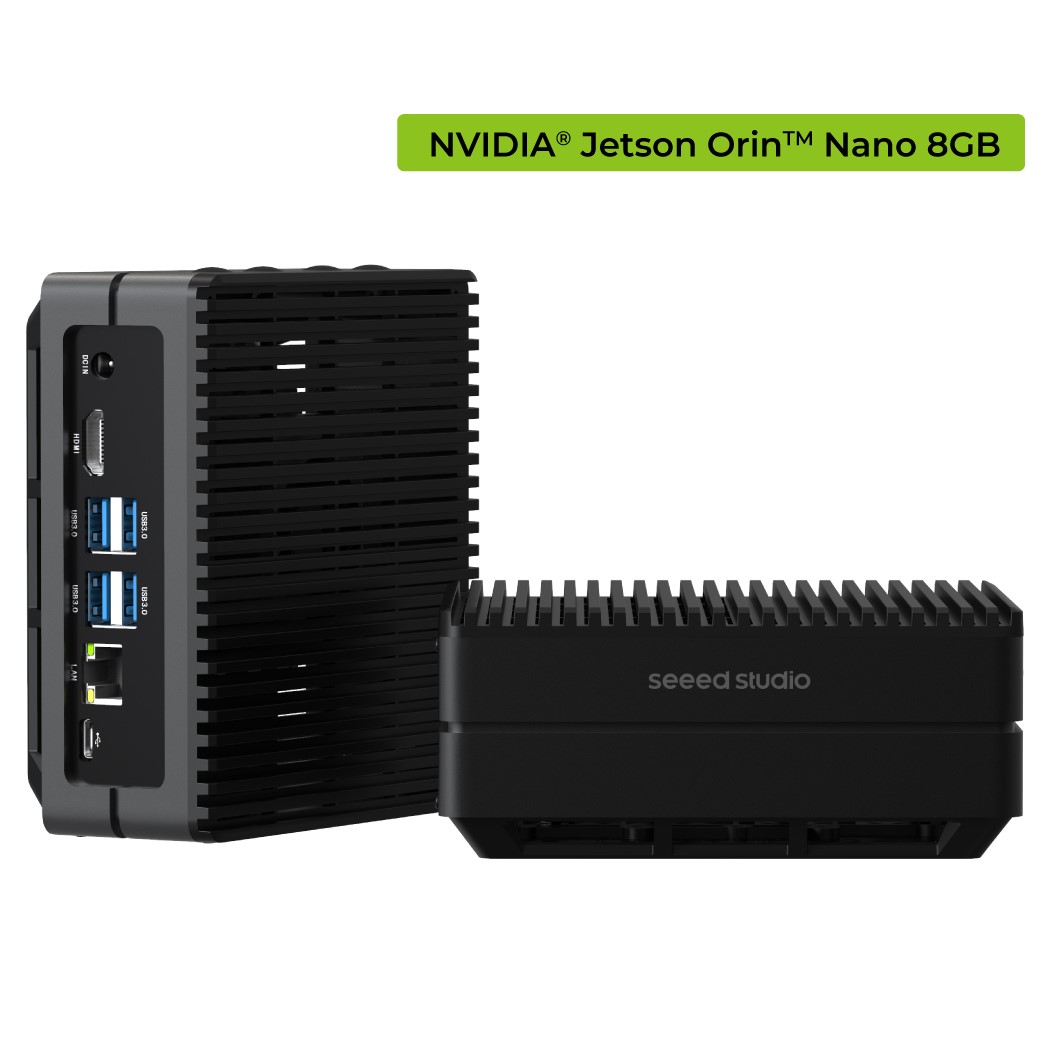

reComputer J3011-Edge AI Device with NVIDIA Jetson Orin™ Nano 8GB Module

with edge AI partners, harness the power of cutting-edge AI technology to accelerate edge computing deployment in the real world across industries.Welcome to check out ourEdge AI partner program. Comparison among reComputer J40 and J30 series boards Specifications reComputer J3010 reComputer J3011 reComputer J4011 reComputer J4012 Module Jetson Orin Nano 4GB Jetson Orin Nano 8GB Jetson Orin NX 8GB Jetson Orin NX 16GB AI Performance 20 TOPS 40 TOPS 70 TOPS 100 TOPS GPU 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores 1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores GPU Max Frequency 625 MHz 765 MHz 918 MHz CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 4MB L3 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 4MB L3 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 4MB L3 CPU Max Frequency 1.5 GHz 2 GHz Memory 4GB 64-bit LPDDR5 34 GB/s 8GB 128-bit LPDDR5 68 GB/s 8GB 128-bit LPDDR5 102.4GB/s 16GB 128-bit LPDDR5 102.4GB/s DL Accelerator / 1x NVDLA v2 2x NVDLA v2 DLA Max Frequency / 614 MHz Vision Accelerator / 1x PVA v2 Storage 128GB NVMe SSD Video Encoder 1080p30 supported by 1-2 CPU cores 1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) Video Decoder 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) Display 1* HDMI 2.1 CSI Camera 2* CSI  (2-lane 15pin) Networking 1* Gigabit Ethernet (10/100/1000M) USB 4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode) M.2 Key M 1* M.2 Key M M.2 Key E 1* M.2 Key E Fan 1* 4 pin Fan Connector(5V PWM) CAN 1* CAN Multifunctional Port 1* 40-Pin Expansion header,1* 12-Pin Control and UART header RTC RTC 2-pin, RTC socket (supports CR1220 but not included) Power 9-19V Power Supply DC 12V/5A(Barrel Jack 5.5/2.5mm) Temperature -10℃~60℃ Mechanical 130mm x120mm x 58.5mm Comparison among reComputer J30 and NVIDIA Jetson Orin Nano Developer Kit Specifications reComputer J3010-Edge AI Device with NVIDIA Jetson Orin™ Nano 4GB module - Seeed Studio reComputer J3011-Edge AI Device with Jetson Orin™ Nano 8GB module - Seeed Studio NVIDIA Jetson Orin Nano Developer Kit Module Jetson Orin Nano 4GB Jetson Orin Nano 8GB Jetson Orin Nano 8GB(non-production)with SD card slot on Module AI Performance 20 TOPS 40 TOPS Storage 128GB NVMe SSD / Display 1* HDMI 2.1 1x DP 1.2 ( MST) connector CSI Camera 2* CSI (2-lane 15pin) 2x MIPI CSI-2 22-pin M.2 Key M 1* M.2 Key M 1* M.2 Key M slot with x4 PCIe Gen3 1* M.2 Key M slot with x2 PCIe Gen3 M.2 Key E 1* M.2 Key E(pre-installed 1*Wifi/Bluetooth combo module) 1* M.2 Key E(pre-installed 1*Wifi/Bluetooth combo module) MicroSD slot / / 1* microSD card socket(on Module) Power 9-19V 9-20 V Power Supply DC 12V/5A(Barrel Jack 5.5/2.5 mm) DC 19V Enclosure Aluminumcase / Mechanical 130mm x120mm x 58.5mm(with case) 100mm x 79mm x 21mm Hardware Overview Interface-rich reference carrier board Seeed carrier board for reComputer J3011 is a high-performance, interface-rich board, providing HDMI 2.1, Gigabit Ethernet, USB 3.2, M.2 key E, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fan, and other rich peripheral interfaces. Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capabilities to all your embedded AI and edge systems. Desktop, Wall Mount, Expandable, or fit in anywhere The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver, and silver metal, whose stackable structure allows you to stack more middle layers to create rooms very easily. Note
